Activations, hooks and histograms.

Activation stats

::: {.cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

from __future__ import annotations
import random,math,torch,numpy as np,matplotlib.pyplot as plt
import fastcore.all as fc
from functools import partial

from miniai.datasets import *
from miniai.learner import *

:::

import torch.nn.functional as F,matplotlib as mpl
from pathlib import Path
from operator import attrgetter,itemgetter
from contextlib import contextmanager

from torch import tensor,nn,optim
import torchvision.transforms.functional as TF
from datasets import load_dataset

from fastcore.test import test_close

torch.set_printoptions(precision=2, linewidth=140, sci_mode=False)
mpl.rcParams['figure.constrained_layout.use'] = True

import logging
logging.disable(logging.WARNING)

::: {.cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

def set_seed(seed, deterministic=False):
    torch.use_deterministic_algorithms(deterministic)
    torch.manual_seed(seed)
    random.seed(seed)
    np.random.seed(seed)

:::

x,y = 'image','label'
name = "fashion_mnist"
dsd = load_dataset(name)
bs = 1024

@inplace
def transformi(b): b[x] = [TF.to_tensor(o) for o in b[x]]

tds = dsd.with_transform(transformi)
dls = DataLoaders.from_dd(tds, bs, num_workers=4)
dt = dls.train

Baseline

def conv(ni, nf, ks=3, act=True):
    res = nn.Conv2d(ni, nf, stride=2, kernel_size=ks, padding=ks//2)
    if act: res = nn.Sequential(res, nn.ReLU())
    return res

def cnn_layers():
    return [
        conv(1 ,8, ks=5),        #14x14
        conv(8 ,16),             #7x7
        conv(16,32),             #4x4
        conv(32,64),             #2x2
        conv(64,10, act=False),  #1x1
        nn.Flatten()]

We want to train quickly, so that means training at a high learning rate.

from torcheval.metrics import MulticlassAccuracy

metrics = MetricsCB(accuracy=MulticlassAccuracy())
cbs = [TrainCB(), DeviceCB(), metrics, ProgressCB(plot=True)]

def fit(model, epochs=1, xtra_cbs=None):
    learn = Learner(model, dls, loss_func=F.cross_entropy, lr=0.6, cbs=cbs+fc.L(xtra_cbs))
    learn.fit(epochs)
    return learn

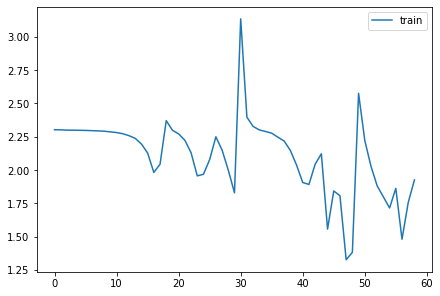

set_seed(1)
learn = fit(nn.Sequential(*cnn_layers()))

accuracy	loss	epoch	train
0.208	2.243	0	train
0.204	2.165	0	eval

Hooks

Manual insertion

class SequentialModel(nn.Module):
    def __init__(self, *layers):
        super().__init__()
        self.layers = nn.ModuleList(layers)
        self.act_means = [[] for _ in layers]
        self.act_stds  = [[] for _ in layers]

    def __call__(self, x):
        for i,l in enumerate(self.layers):
            x = l(x)
            self.act_means[i].append(to_cpu(x).mean())
            self.act_stds [i].append(to_cpu(x).std ())
        return x

    def __iter__(self): return iter(self.layers)

set_seed(1)
model = SequentialModel(*cnn_layers())

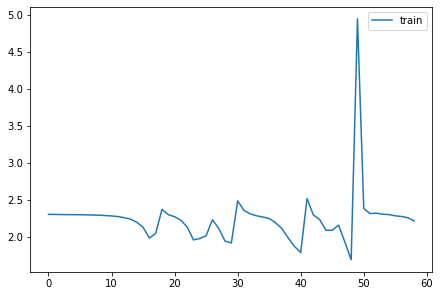

learn = fit(model)

accuracy	loss	epoch	train
0.247	2.110	0	train
0.376	1.659	0	eval

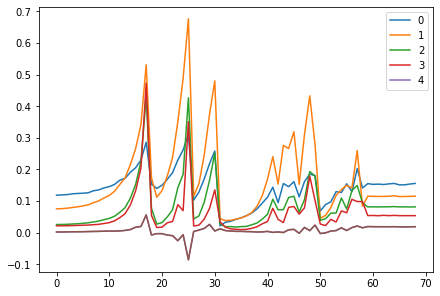

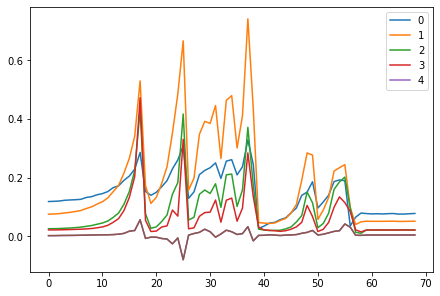

for l in model.act_means: plt.plot(l)
plt.legend(range(5));

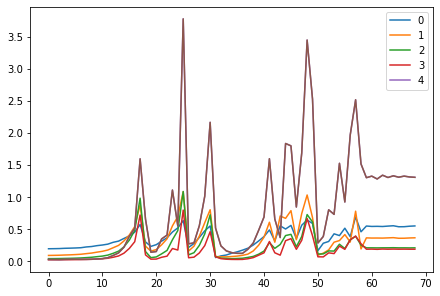

for l in model.act_stds: plt.plot(l)
plt.legend(range(5));

Pytorch hooks

Hooks are PyTorch object you can add to any nn.Module. A hook will be called when a layer, it is registered to, is executed during the forward pass (forward hook) or the backward pass (backward hook). Hooks don’t require us to rewrite the model.

set_seed(1)
model = nn.Sequential(*cnn_layers())

A hook is attached to a layer, and needs to have a function that takes three arguments: module, input, output. Here we store the mean and std of the output in the correct position of our list.

act_means = [[] for _ in model]
act_stds  = [[] for _ in model]

def append_stats(i, mod, inp, outp):
    act_means[i].append(to_cpu(outp).mean())
    act_stds [i].append(to_cpu(outp).std())

for i,m in enumerate(model): m.register_forward_hook(partial(append_stats, i))

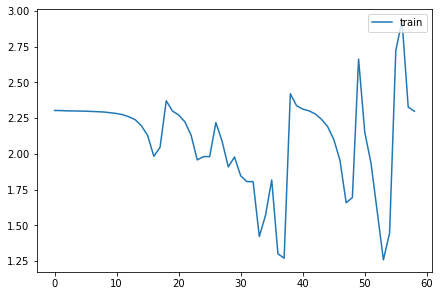

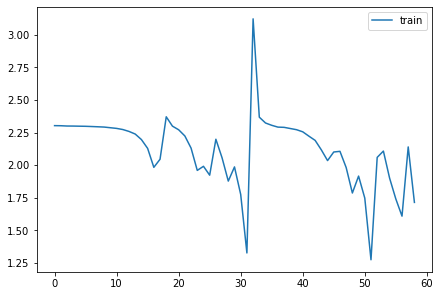

fit(model)

accuracy	loss	epoch	train
0.263	2.091	0	train
0.164	2.245	0	eval

<miniai.learner.Learner>

for o in act_means: plt.plot(o)
plt.legend(range(5));

Hook class

We can refactor this in a Hook class. It’s very important to remove the hooks when they are deleted, otherwise there will be references kept and the memory won’t be properly released when your model is deleted.

::: {.cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

class Hook():
    def __init__(self, m, f): self.hook = m.register_forward_hook(partial(f, self))
    def remove(self): self.hook.remove()
    def __del__(self): self.remove()

:::

def append_stats(hook, mod, inp, outp):
    if not hasattr(hook,'stats'): hook.stats = ([],[])
    acts = to_cpu(outp)
    hook.stats[0].append(acts.mean())
    hook.stats[1].append(acts.std())

set_seed(1)
model = nn.Sequential(*cnn_layers())

hooks = [Hook(l, append_stats) for l in model[:5].children()]

learn = fit(model)

accuracy	loss	epoch	train
0.247	2.122	0	train
0.397	1.456	0	eval

for h in hooks:
    plt.plot(h.stats[0])
    h.remove()
plt.legend(range(5));

A Hooks class

class DummyCtxMgr:
    def __enter__(self, *args):
        print("let's go!")
        return self
    def __exit__ (self, *args): print("all done!")
    def hello(self): print("hello.")

with DummyCtxMgr() as dcm: dcm.hello()

let's go!
hello.
all done!

class DummyList(list):
    def __delitem__(self, i):
        print(f"Say bye to item {i}")
        super().__delitem__(i)

dml = DummyList([1,3,2])
dml

[1, 3, 2]

del(dml[2])
dml

Say bye to item 2

[1, 3]

::: {.cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

class Hooks(list):
    def __init__(self, ms, f): super().__init__([Hook(m, f) for m in ms])
    def __enter__(self, *args): return self
    def __exit__ (self, *args): self.remove()
    def __del__(self): self.remove()
    def __delitem__(self, i):
        self[i].remove()
        super().__delitem__(i)
    def remove(self):
        for h in self: h.remove()

:::

set_seed(1)
model = nn.Sequential(*cnn_layers())

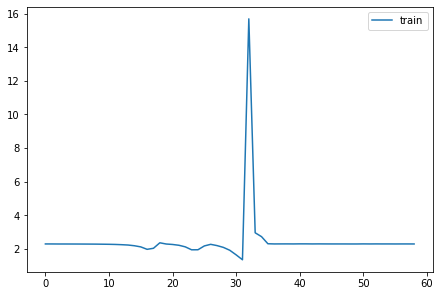

with Hooks(model, append_stats) as hooks:
    fit(model)

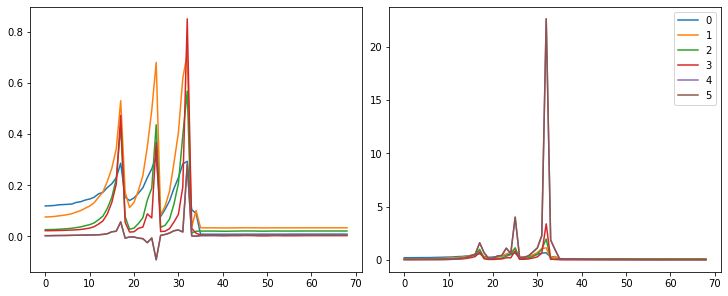

    fig,axs = plt.subplots(1,2, figsize=(10,4))
    for h in hooks:
        for i in 0,1: axs[i].plot(h.stats[i])
    plt.legend(range(6));

accuracy	loss	epoch	train
0.166	2.475	0	train
0.100	2.303	0	eval

HooksCallback

::: {.cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

class HooksCallback(Callback):
    def __init__(self, hookfunc, mod_filter=fc.noop, on_train=True, on_valid=False, mods=None):
        fc.store_attr()
        super().__init__()

    def before_fit(self, learn):
        if self.mods: mods=self.mods
        else: mods = fc.filter_ex(learn.model.modules(), self.mod_filter)
        self.hooks = Hooks(mods, partial(self._hookfunc, learn))

    def _hookfunc(self, learn, *args, **kwargs):
        if (self.on_train and learn.training) or (self.on_valid and not learn.training): self.hookfunc(*args, **kwargs)

    def after_fit(self, learn): self.hooks.remove()
    def __iter__(self): return iter(self.hooks)
    def __len__(self): return len(self.hooks)

:::

hc = HooksCallback(append_stats, mod_filter=fc.risinstance(nn.Conv2d))

set_seed(1)
model = nn.Sequential(*cnn_layers())

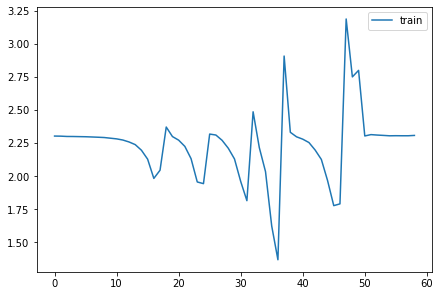

fit(model, xtra_cbs=[hc]);

accuracy	loss	epoch	train
0.205	2.232	0	train
0.100	2.305	0	eval

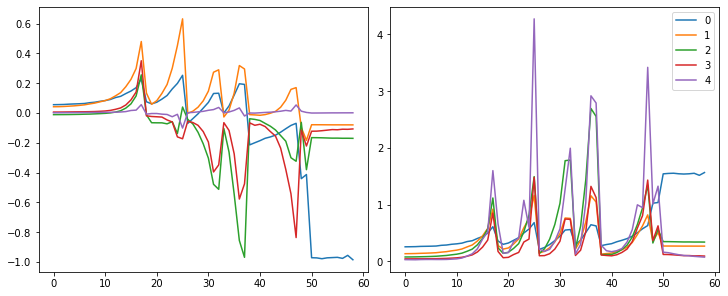

fig,axs = plt.subplots(1,2, figsize=(10,4))
for h in hc:
    for i in 0,1: axs[i].plot(h.stats[i])
plt.legend(range(6));

Histograms

::: {.cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

def append_stats(hook, mod, inp, outp):
    if not hasattr(hook,'stats'): hook.stats = ([],[],[])
    acts = to_cpu(outp)
    hook.stats[0].append(acts.mean())
    hook.stats[1].append(acts.std())
    hook.stats[2].append(acts.abs().histc(40,0,10))

:::

set_seed(1)
model = nn.Sequential(*cnn_layers())
hc = HooksCallback(append_stats, mod_filter=fc.risinstance(nn.Conv2d))

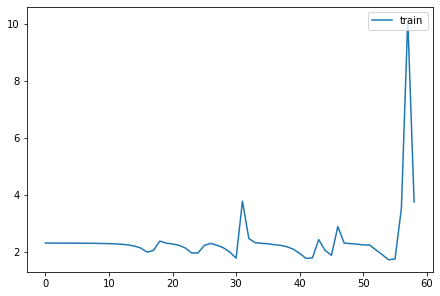

fit(model, xtra_cbs=[hc]);

accuracy	loss	epoch	train
0.213	2.379	0	train
0.100	21.771	0	eval

::: {.cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

# Thanks to @ste for initial version of histgram plotting code
def get_hist(h): return torch.stack(h.stats[2]).t().float().log1p()

:::

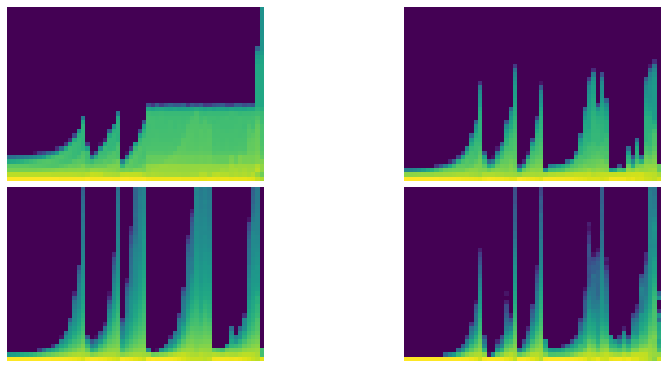

fig,axes = get_grid(len(hc), figsize=(11,5))
for ax,h in zip(axes.flat, hc):
    show_image(get_hist(h), ax, origin='lower')

::: {.cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

def get_min(h):
    h1 = torch.stack(h.stats[2]).t().float()
    return h1[0]/h1.sum(0)

:::

fig,axes = get_grid(len(hc), figsize=(11,5))
for ax,h in zip(axes.flatten(), hc):
    ax.plot(get_min(h))
    ax.set_ylim(0,1)

ActivationStats

::: {.cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

class ActivationStats(HooksCallback):
    def __init__(self, mod_filter=fc.noop): super().__init__(append_stats, mod_filter)

    def color_dim(self, figsize=(11,5)):
        fig,axes = get_grid(len(self), figsize=figsize)
        for ax,h in zip(axes.flat, self):
            show_image(get_hist(h), ax, origin='lower')

    def dead_chart(self, figsize=(11,5)):
        fig,axes = get_grid(len(self), figsize=figsize)
        for ax,h in zip(axes.flatten(), self):
            ax.plot(get_min(h))
            ax.set_ylim(0,1)

    def plot_stats(self, figsize=(10,4)):
        fig,axs = plt.subplots(1,2, figsize=figsize)
        for h in self:
            for i in 0,1: axs[i].plot(h.stats[i])
        axs[0].set_title('Means')
        axs[1].set_title('Stdevs')
        plt.legend(fc.L.range(self))

:::

astats = ActivationStats(fc.risinstance(nn.Conv2d))

set_seed(1)
model = nn.Sequential(*cnn_layers())

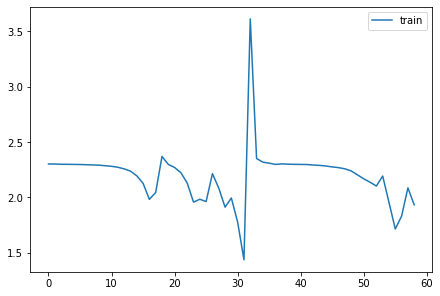

fit(model, xtra_cbs=[astats]);

accuracy	loss	epoch	train
0.208	2.199	0	train
0.289	1.695	0	eval

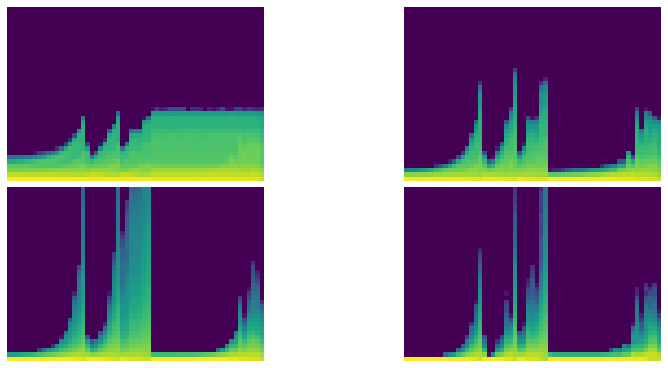

astats.color_dim()

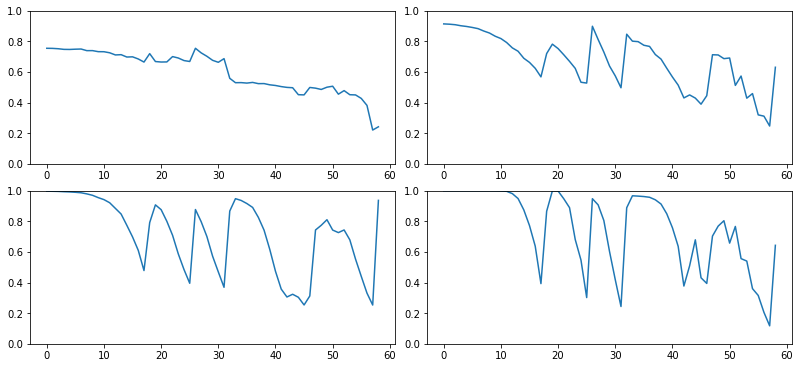

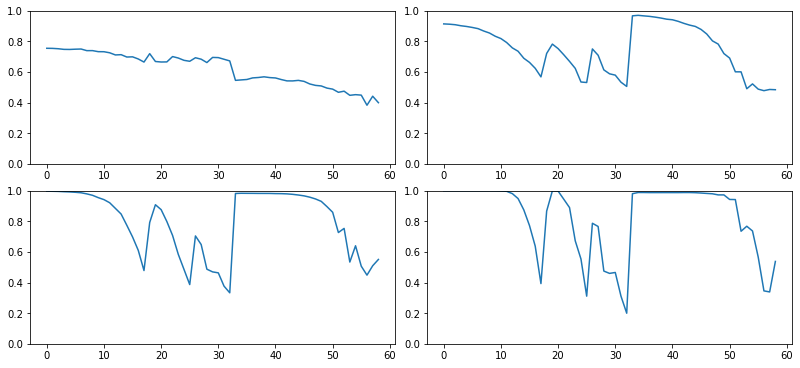

astats.dead_chart()

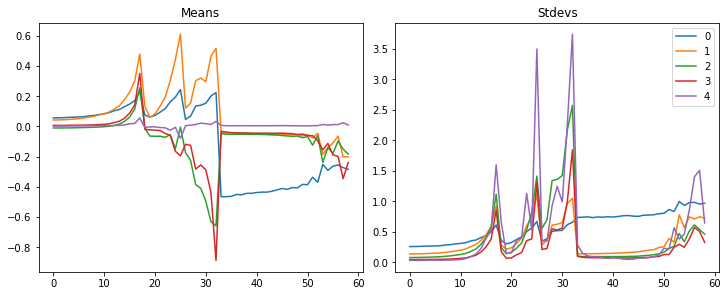

astats.plot_stats()
